Toyota RAV4 Wheel Visualizer
See wheels on your own RAV4 before you buy — upload a photo, pick real aftermarket wheels, and get a photoreal render in about ten seconds.
How it works on your RAV4

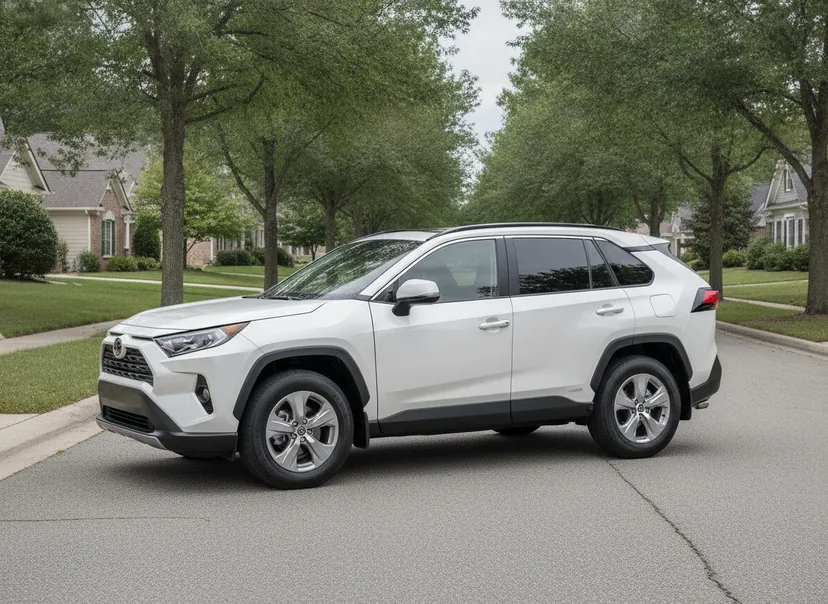

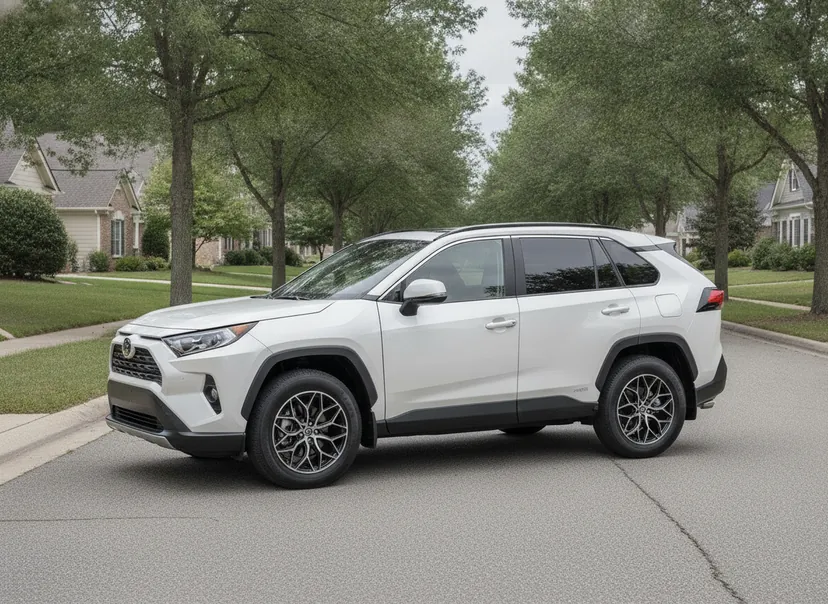

Drag the line. Actual WheelPeek output: an AI-generated demo Toyota RAV4 re-rendered with Vossen HF-2 in Gloss Black Machined — the same ten-second pipeline that runs on a photo of your own RAV4.
A crossover like the RAV4 has a tall arch and a visible wheel gap, so a wheel that looks right on a low sedan can read completely differently here. WheelPeek works with photos of any RAV4, and you don't need a VIN or a trim code to start:
- Add a photo of your car. Open the free beta and shoot or import your RAV4 — a clean side or front three-quarter angle in even light renders best. Not parked near it? Generate a demo car and experiment first.
- Let the AI read it. It identifies the make, model, bolt pattern and OEM wheel sizes straight from the photo, so it already knows a RAV4 is a
5x114.3car sitting on 17- to 19-inch rims. - Pick real wheels and render. Browse 650+ real wheels from 21 brands with FITS badges marking the ones that match your car's pattern and sizes, then tap — a photoreal HD image replaces your photo in about ten seconds.
- Compare, then decide. Heart your shortlist and lay it out on a 2×2 or 3×3 comparison sheet — same car, same angle, only the wheels change — or share a numbered voting card and let people reply with a number.
Toyota RAV4 wheel specs & fitment
| Generation | Bolt pattern | Center bore | OEM wheel sizes | Typical OEM tire sizes |
|---|---|---|---|---|
| XA40 (2013–2018) | 5x114.3 |
60.1 mm | 17×7, 18×7.5 | 225/65R17, 235/55R18 |
| XA50 (2019–2025) | 5x114.3 |
60.1 mm | 17×7, 18×7.5, 19×7.5 | 225/65R17, 225/60R18, 235/55R19 |
| Redesigned (2026 model year) | 5x114.3 (confirm) |
60.1 mm (confirm) | New for 2026 — verify against your car | Verify against your car |
The RAV4 is one of the simpler crossovers to shop for. The XA40 (2013–2018) and XA50 (2019–2025) both run a 5x114.3 bolt pattern over a 60.1 mm center bore with M12x1.5 lug nuts, and 5x114.3 is one of the most widely produced car patterns in the world — so the wheel selection is enormous. Because almost every aftermarket wheel is machined with a bore larger than 60.1 mm, hub-centric rings are effectively standard to keep the wheel running true and avoid a highway-speed vibration that balancing won't fix. OEM sizes climb with the trim, from a 17-inch wheel on base cars to the 19-inch wheel on the Limited.
Two RAV4 specifics are worth flagging. First, the redesigned model arriving for the 2026 model year is new enough that its wheel specs are worth confirming against your own car rather than assuming they carry over from the XA50 — the pattern is very likely to stay 5x114.3, but treat the details as unconfirmed until you check. Second, the hybrid and plug-in Prime carry battery weight the gas car doesn't, so while they take the same wheels mechanically, load rating deserves a closer look on the heavier models.
Honest note: these fitment specs are estimates compiled from manufacturer and published data, and they vary by trim, model year and market — the redesigned 2026 car in particular should be verified against your own vehicle. Always verify bolt pattern, offset, width and brake clearance with the seller or manufacturer before ordering.
Popular RAV4 setups and looks
The current RAV4 reads far more rugged than earlier generations, and its wheel trends split along that line:
- The rugged look leads. Adventure and TRD Off-Road trims set the tone — darker, chunkier alloys, sometimes with all-terrain-style tires — and a lot of owners chase that direction with satin black or dark-machined wheels.
- Keep diameter close to stock. Sizing up from 17 to 18 or 19 usually means a lower-profile tire to hold overall diameter, which fills the arch better but trades a little ride comfort.
- Bronze and gunmetal photograph well. On the white, gray and blue cars the RAV4 is most often sold in, a warm bronze or a gunmetal reads as intentional without being loud.
- Limited owners go the other way. A larger polished or two-tone 19-inch wheel makes the RAV4 look more upscale than outdoorsy — a fair split of the audience.
- Weight matters on the hybrid. The hybrid and Prime are heavier, so lighter wheels are appealing — but not at the expense of a load rating that suits the car.
Two things owners learn late: a taller overall tire diameter reads your speedometer optimistically until it's accounted for, and a second set of wheels needs its own TPMS sensors unless you swap them over every time.
Wheels in the catalog
The catalog holds 650+ real aftermarket wheels from 21 brands, each listed with the manufacturer's own specs rather than a generic 3D model. Because 5x114.3 is such a common pattern, the RAV4 sees a large slice of it. Brands that suit a rugged crossover — Method Race Wheels and American Racing for the overland look, fifteen52 and Enkei for cleaner flow-formed designs, and Konig and Aodhan for value — all come up here.
We won't tell you from a web page that a particular wheel model fits your car. Inside the app, FITS badges and the Decision Score run that check against the pattern and sizes detected on your actual RAV4, including a brake-clearance rating — and even then, confirm load rating and offset with the seller before you order.
FAQ
Will aftermarket wheels fit my Toyota RAV4?
For the modern RAV4 the pattern is easy: the XA40 (2013–2018) and XA50 (2019–2025) both use a 5x114.3 bolt pattern with a 60.1 mm center bore and M12x1.5 lug nuts, which is one of the most common car patterns in the aftermarket. Two things to keep in mind. Most aftermarket wheels are bored larger than 60.1 mm, so you will usually want hub-centric rings to run true. And the redesigned model that arrives for 2026 is new enough that its exact wheel specs are worth confirming against your own car rather than assuming they carry over. Older RAV4 generations from before 2013 can differ, so check yours if it is an earlier car.
Does a hybrid RAV4 need a different wheel?
The bolt pattern and bore are the same, so a hybrid takes the same wheels as a gas RAV4 mechanically. What is worth attention is load rating. The hybrid and plug-in Prime carry extra battery weight, so the car is heavier than the gas model, and the factory tires are chosen with that in mind. When you shop aftermarket wheels and tires, check that the load rating is adequate for your specific model rather than assuming a lightweight wheel built for a small sedan is enough. This is the same discipline that applies to any heavier crossover, and it matters most if you also carry passengers and cargo.
What do the TRD Off-Road and Adventure wheels look like?
The Adventure and TRD Off-Road trims on the XA50 lean into a rugged look with darker, more aggressive alloys and available all-terrain-style tires, which is a big part of why the RAV4 reads tougher than earlier generations. If that is the direction you like, it is worth trying a matte or dark-machined wheel against your paint before spending on the aftermarket, because a factory-style TRD look often gets you most of the way there. On the other end, the Limited's larger polished or two-tone 19-inch wheel suits owners who want the RAV4 to read more upscale than outdoorsy.
Can I put bigger wheels on my RAV4?
You can, within reason, and the usual rule is to keep the overall tire diameter close to stock so the speedometer stays accurate and the car drives as intended. Going from a 17 up to an 18 or a 19 generally means a lower-profile tire to keep that diameter in check, which trades a little ride comfort for a filled-out look — a fair trade many owners like on a crossover with a visible arch gap. Larger diameters and wider wheels also make load rating and clearance more important, so confirm the full spec, including offset, before you order rather than after.
Is it free, and does it work with my model year?
WheelPeek is free during the public beta, runs in your browser, and takes about ten seconds per render. It works with photos of any RAV4, from an XA40 through the XA50 and into the redesigned 2026 car, because the AI reads the make, model, bolt pattern and OEM wheel sizes out of the photo rather than asking you to pick a year and trim from a menu. The 2026 redesign is new enough that its exact specs are worth double-checking, and if your car is modified a custom fitment override lets you enter what you actually run so the scoring matches your build.
