Tesla Model Y Wheel Visualizer

How it works on your Model Y

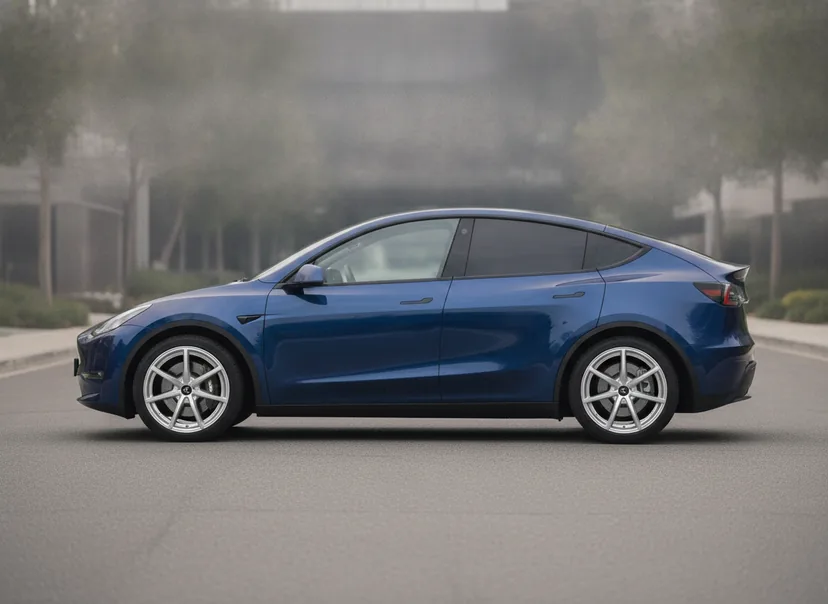

Demo car WheelPeek render

Drag the line. Actual WheelPeek output: an AI-generated demo Model Y re-rendered with Forged Metallics FM01 Stratos in bright silver — the same ten-second pipeline that runs on a photo of your own car.

WheelPeek works with photos of any Model Y. You don't need a VIN, a trim code or your build sheet, because it reads the car in front of it:

1. Add a photo of your car. Open the free beta and shoot or import your Model Y. A front three-quarter or clean side shot in flat light renders best on a car with arches this tall. Not parked near it? Generate a demo car and experiment first.
2. Let the AI read it. It identifies the make, model, bolt pattern and OEM wheel sizes straight from the photo, so it already knows a Model Y is a 5x114.3 car sitting on 18- to 21-inch rims.
3. Pick real wheels and render. Browse 650+ real wheels from 21 brands with FITS badges marking the ones that match your car's pattern and sizes, then tap — a photoreal HD image replaces your photo in about ten seconds, with the brake hardware showing through the spokes.
4. Compare, then decide. Heart your shortlist and lay it out on a 2×2 or 3×3 comparison sheet — same car, same angle, only the wheels change — or share a numbered voting card and let people reply with a number.

Tesla Model Y wheel specs & fitment

The good news is that nothing structural has changed since 2020. Every Model Y — pre-refresh, Juniper, Standard, Performance — is 5x114.3 on a 64.1 mm hub with M14x1.5 lug nuts torqued to roughly 129 lb-ft, which puts it on the single most widely produced bolt pattern in the aftermarket. Factory offsets are unusually consistent too: the 19- and 20-inch wheels both run about +45, and the staggered 21s sit near +40 front and +48 rear. Because most aftermarket wheels are machined with a bore larger than 64.1 mm, hub-centric rings are effectively mandatory — without them you get a highway-speed vibration that balancing will never cure.

The number people skip on this car is load rating. A Long Range Model Y weighs roughly 4,400 pounds empty, and its factory tires are XL-rated with load indexes in the low 100s (255/45R19 is a 104 XL). A budget 5x114.3 wheel engineered around a compact sedan can be marginal here even though it bolts straight on, so read the wheel's stated load rating alongside the pattern. Model years overlap too: Tesla kept selling the pre-refresh car as a 2025 while the refreshed Juniper arrived badged as a 2026, so when you buy used takeoffs, go by the wheel design rather than the year in the listing. The stretched six-seat Model Y L, opened for US orders in 2026, is listed on the same pattern and bore, though it is new enough to be worth confirming against your own car.

Popular Model Y setups and looks

Start with the free change. The 19-inch Gemini is not a hubcap on a steel wheel — it is a split-seven-spoke silver alloy hiding under a clip-on plastic aero cover, and Tesla publishes its own removal instructions. Ten minutes with the covers off gives you a different-looking car for nothing, which is the cheapest possible way to find out whether you actually want to spend money. Two caveats: the bare wheel looks a little unfinished until you add a center cap, and the covers are there for aerodynamics, so expect to give back a small slice of range. The Juniper's 19-inch Crossflow works the same way.

Past that, a few habits show up over and over on this car:

• Square is the default, staggered is the exception. Only the Performance leaves the factory with a wider rear, and most owners stay square so they can keep rotating tires on a heavy car that chews them.
• 19s and 20s do the real work. 19s ride best and go furthest; 20s are the popular compromise; 21s are a look-first choice on a crossover with a lot of mass and not much sidewall to absorb impacts.
• Height flatters bigger diameters. The Model Y has a tall arch and a visible gap, so 20s fill the body better than they do on a Model 3 — one reason owners size up more readily here than on the sedan.
• Dark finishes dominate. Satin black and gunmetal are the safe answer on white, gray and black cars; bronze reads best on blue and red. Polished lips brighten a dark car but show curb rash forever.
• Weight is a live topic. Unsprung mass shows up in both ride and consumption on an EV, so flow-formed and lighter cast wheels come up constantly — just not at the expense of load rating.

Wheels in the catalog

The catalog holds 650+ real aftermarket wheels from 21 brands, each listed with the manufacturer's own specs rather than a generic 3D model. Because 5x114.3 is the most widely produced pattern in the industry, the Model Y sees an unusually large share of it. Brands that come up often on this car — Vossen, Rohana, Blaque Diamond, Rotiform, Titan 7 and ESR — are all in there, covering the deep-concave luxury faces that suit a crossover as well as lighter flow-formed designs.

We won't tell you from a web page that a particular wheel model fits your car. Inside the app, FITS badges and the Decision Score run that check against the pattern and sizes detected on your actual Model Y, including a brake-clearance rating — and even then, confirm with the seller before you order.
