Subaru WRX Wheel Visualizer
See wheels on your own WRX before you buy — upload a photo, pick real aftermarket wheels, and get a photoreal render in about ten seconds.
How it works on your WRX

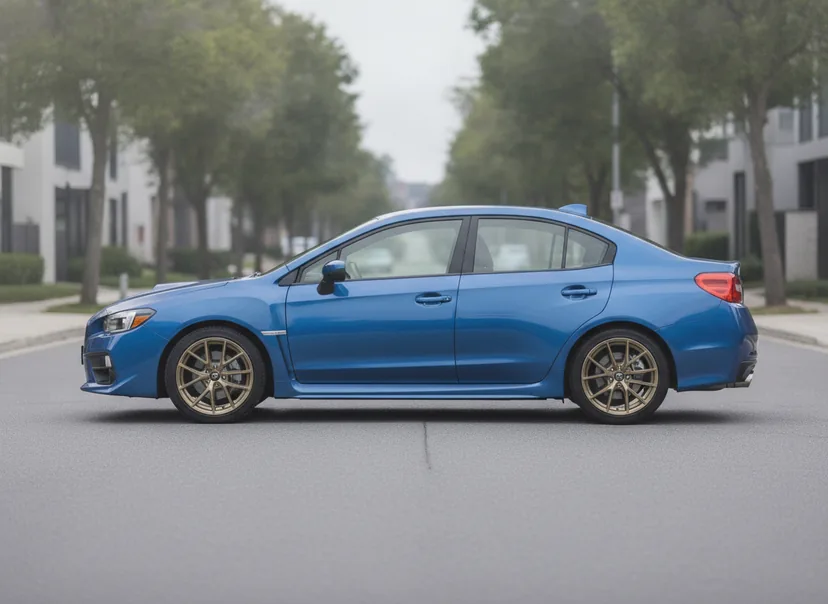

Drag the line. Actual WheelPeek output: an AI-generated demo WRX re-rendered with Forged Metallics FM02 Overdrive in satin gold — the same ten-second pipeline that runs on a photo of your own car.
WheelPeek works with photos of any WRX — you don't need your VIN or a trim code to start, because it reads the car itself:
- Add a photo of your car. Open the free beta and snap or import a shot of your WRX — a clean side or front three-quarter angle in even light renders best. Not near the car? Generate a demo car and play with it first.
- Let the AI read it. It identifies the make, model, bolt pattern and OEM wheel sizes from the photo, which matters more on a WRX than on most cars: a hatch-era GR and a 2023 VB look nothing alike and don't share a bolt pattern, and the app sorts that out before you start browsing.
- Pick real wheels and render. Browse 650+ real wheels from 21 brands with FITS badges flagging what matches your car's pattern and sizes, then tap: a photoreal HD image replaces your photo in about ten seconds, calipers showing through the spokes.
- Compare, then decide. Heart your favorites and line them up on a 2×2 or 3×3 comparison sheet — same car, same angle, only the wheels change — or share a numbered voting card so friends can reply with a number.
Subaru WRX wheel specs & fitment
| Generation | Bolt pattern | Center bore | OEM wheel sizes | Typical OEM tire sizes |
|---|---|---|---|---|
| WRX GD (2002–2007) | 5x100 |
56.1 mm | 16×6.5 +53, 17×7 +55 | 205/55R16, 215/45R17 |
| WRX GE/GH/GR/GV (2008–2014) | 5x100 |
56.1 mm | 17×7 +53, 17×8 +53 (2011–14) | 205/50R17, 225/45R17, 235/45R17 |
| WRX STI (2005–2014) | 5x114.3 |
56.1 mm | 17×8 +53, 18×8.5 +55 (2008–14) | 235/45R17, 245/40R18 |
| WRX VA (2015–2021) | 5x114.3 |
56.1 mm | 17×8 +55, 18×8.5 +55; STI 19×8.5 from 2018 | 235/45R17, 245/40R18, 245/35R19 |
| WRX VB (2022+) | 5x114.3 |
56.1 mm | 17×8 +55 (base), 18×8.5 +55, 19×8.5 (TR, tS) | 235/45R17, 245/40R18, 245/35R19 |
The changeover year is the thing to get right. Every WRX from 2002 through 2014 is 5x100; every WRX from 2015 on — VA and VB alike — is 5x114.3. The two patterns are 14 mm apart and look identical in a classified-ad photo, so a set of wheels advertised as "fits WRX" is not information. The STI adds a second trap on top of it: US-market STIs moved to 5x114.3 for 2005 while the standard WRX stayed on 5x100 for another decade, which means a 2011 WRX and a 2011 STI cannot swap wheels at all. Always ask for the model year of the car the wheels came off.
Once the pattern is right, two numbers do the rest of the work. The hub bore is 56.1 mm on every generation, and that is small — most 5x114.3 aftermarket wheels are machined at 64.1, 67.1 or 73.1 mm and rely on hub-centric rings to sit true, so on a Subaru the rings are not optional. Factory offset is high as well, +53 to +55 across essentially the whole run, which is why stock wheels tuck so far inside the arches. Enthusiast setups usually land in the +35 to +45 range, pushing the wheel outboard roughly 10–20 mm per side. Lugs are M12x1.25 and torque to about 89 lb-ft (120 Nm).
Honest note: these fitment specs are estimates compiled from manufacturer and published data, and they vary by trim, model year and market. Always verify bolt pattern, offset, width and brake clearance with the seller or manufacturer before ordering.
Popular WRX setups and looks
Few cars carry as much wheel history as this one, and WRX taste is unusually settled as a result:
- Gold is a legitimate color here. On most cars gold reads as a costume; on a WRX it reads as rally heritage, and gold on World Rally Blue is close to a factory look. It is also the finish people most regret guessing at from a product photo, because how it lands depends heavily on your paint and your light.
- Square, always. Subaru's all-wheel drive wants all four tires closely matched in rolling diameter, so staggered setups are rare and rotation stays on the table. Whatever you pick, keep the overall diameter near stock.
- 18×9.5 is the default upgrade. Offsets in the high +30s to mid +40s with a 255/35R18 or 265/35R18 fill the VA and VB arches without the wheel living outside the fender. Anything more aggressive usually means rolling fenders or accepting rub at compression.
- 17s never went away. A 17×9 with a taller sidewall is the rally-inflected look, and the practical answer for track days, gravel and a dedicated winter set. Check clearance if yours has Brembos.
- Finish follows the classics. Bronze and satin bronze are the modern default, gunmetal is the safe choice on white and gray cars, and flat black flatters the body more than the wheel.
- Weight is a real conversation. These cars get driven hard, so cast versus flow-formed versus forged comes up constantly — and the difference shows up in turn-in long before it shows on a scale.
Wheels in the catalog
The catalog holds 650+ real aftermarket wheels from 21 brands, each with the manufacturer's own specs rather than a generic 3D model. Brands with deep roots on this platform are all in there — Enkei, whose lightweight rally-derived designs became the default Subaru wheel two decades ago, plus RAYS/Volk Racing, Titan 7, Kansei, König and ESR — spanning forged track sets, flow-formed mid-range designs and budget-friendly options.
We won't tell you a specific wheel model fits your car from a web page. Inside the app, FITS badges and the Decision Score do that check against the pattern and sizes detected on your actual WRX, including a brake-clearance rating that matters if you're on Brembos — and even then, confirm with the seller before you order.
FAQ
Will aftermarket wheels fit my Subaru WRX?
The answer depends entirely on the year. A 2015 or newer WRX uses a 5x114.3 bolt pattern, which is one of the most widely produced patterns in the aftermarket, so the selection is enormous. A 2002 to 2014 WRX uses 5x100, a much narrower shelf. Both share a 56.1 mm center bore and M12x1.25 studs. After the pattern, fitment comes down to diameter, width, offset and brake clearance, and on this car the hub bore deserves attention too: 56.1 mm is smaller than almost anything the aftermarket machines, so hub-centric rings are effectively mandatory.
When did the WRX change from 5x100 to 5x114.3?
The WRX switched with the 2015 model year, when the car moved to the VA chassis. Everything from 2002 through 2014 is 5x100, and everything from 2015 on, including the 2022 and newer VB, is 5x114.3. The STI complicates it further: US-market STIs moved to 5x114.3 for the 2005 model year, while the 2004 STI was still 5x100. This is the single most common way people buy the wrong wheels for a WRX, because a listing that says fits WRX tells you nothing. Ask for the year of the car the wheels came off, not the model name.
Will WRX STI wheels fit my WRX?
From 2015 onward, yes on the pattern: the VA and VB WRX and the VA STI all use 5x114.3 with a 56.1 mm bore, and the 18x8.5 +55 wheel is shared, so STI takeoffs are a popular cheap upgrade. Between 2005 and 2014 the answer is no, because the STI was 5x114.3 while the WRX of the same year was 5x100. Going the other direction is where clearance bites: STI Brembo calipers, and the six-piston Brembos on the 2024 TR and 2025 tS, need spoke clearance that plenty of 17-inch and some 18-inch wheels do not have.
Do bigger wheels hurt ride or performance on a WRX?
On a car with this suspension tune, yes, noticeably. The factory ladder runs 17-inch on the base car, 18-inch on most trims and 19-inch on the 2024 TR and 2025 tS, and each step trades sidewall for response. Unsprung weight matters more than the diameter number: a heavy 19-inch cast wheel will dull a WRX in a way a light flow-formed 18 will not. There is also an all-wheel-drive constraint that owners of front-drive cars never think about. Subaru drivetrains want all four tires closely matched in rolling diameter, so keep the set square and keep the overall diameter close to stock.
Is it free, and does it work with my model year?
WheelPeek is free during the public beta, runs in your browser, and takes about ten seconds per render. It works with photos of any WRX, from a 2002 bugeye to a current VB, because the AI reads the make, model, bolt pattern and OEM wheel sizes out of the photo rather than from a year-and-trim menu. If your car is modified, or if you want to check a set against a fitment you already run, a custom fitment override lets you enter your actual numbers so the scoring follows your build rather than the factory spec.
