Toyota GR Supra Wheel Visualizer
See wheels on your own GR Supra before you buy — upload a photo, pick real aftermarket wheels, and get a photoreal render in about ten seconds.
How it works on your GR Supra

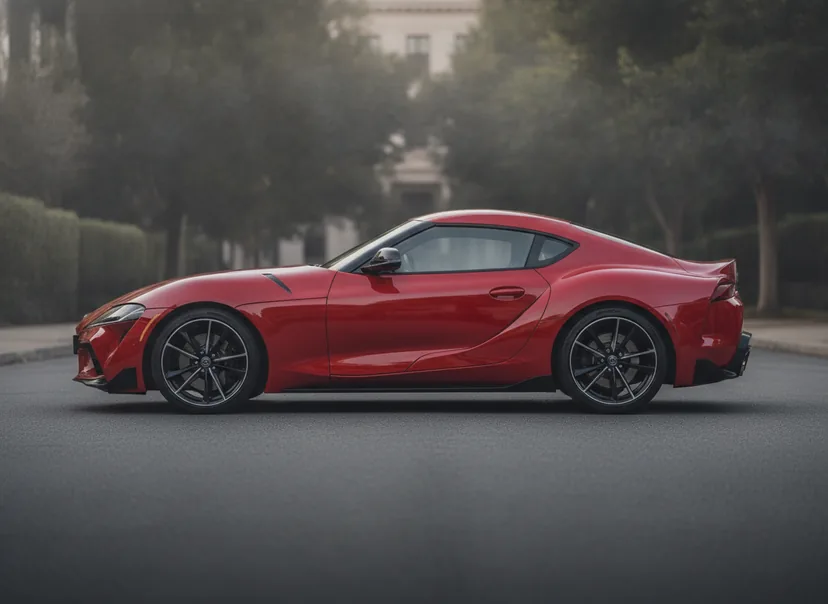

Drag the line. Actual WheelPeek output: an AI-generated demo Supra re-rendered with Forged Metallics FM07 Vector in satin black — the same ten-second pipeline that runs on a photo of your own car.
WheelPeek works with photos of any GR Supra — no VIN and no trim code to type in, because it reads the car in the picture:
- Add a photo of your car. Open the free beta and snap or import a shot of your Supra — a clean side or front three-quarter angle in even light renders best. Not near the car? Generate a demo car and play with it first.
- Let the AI read it. It identifies the make, model, bolt pattern and OEM wheel sizes from the photo, so it already knows a MkV Supra is a
5x112car running staggered 18s or 19s rather than the5x114.3of the Supras that came before it. - Pick real wheels and render. Browse 650+ real wheels from 21 brands with FITS badges flagging what matches your car's pattern and sizes, then tap: a photoreal HD image replaces your photo in about ten seconds, calipers showing through the spokes.
- Compare, then decide. Heart your favorites and line them up on a 2×2 or 3×3 comparison sheet — same car, same angle, only the wheels change — or share a numbered voting card so friends can reply with a number.
Toyota GR Supra wheel specs & fitment
| Generation | Bolt pattern | Center bore | OEM wheel sizes | Typical OEM tire sizes |
|---|---|---|---|---|
| GR Supra 3.0, MkV (2020–2026) | 5x112 |
66.6 mm | 19×9 ET32 front / 19×10 ET40 rear (forged) | 255/35ZR19 front, 275/35ZR19 rear |
| GR Supra 2.0, MkV (2021–2024) | 5x112 |
66.6 mm | 18×9 ET32 front / 18×10 ET40 rear | 255/40ZR18 front, 275/40ZR18 rear |
| Supra MkIV (A80, 1993–2002) | 5x114.3 |
60.1 mm | 16×8 / 16×9 base; 17×8 front / 17×9.5 rear Turbo | 225/50R16, 245/50R16; Turbo 235/45R17, 255/40R17 |
The MkV is a BMW underneath and its wheel hardware says so. 5x112 on a 66.6 mm bore is modern BMW G-chassis spec, not Toyota's — the same combination as the BMW Z4 that shares this car's Austrian assembly line, and the same as the G80 M3. That is mostly good news: any 5x112 wheel in the catalog is a candidate, and a set that came off a Z4 bolts on. It also closes the classic Supra parts bin to you. The MkIV ran 5x114.3 on a 60.1 mm bore with M12x1.5 studs, so nothing from a 1990s Supra fits a 2020s one — a mismatch that catches people out on used-wheel listings that just say "Supra".
The car uses lug bolts rather than studs and nuts, another BMW inheritance: M14x1.25 on a conical seat, torqued to roughly 140 Nm (about 103 lb-ft), and short from the factory. So mounting a wheel is awkward without a guide pin, and a spacer or a thicker wheel face needs longer bolts. Factory offsets are high — ET32 front and ET40 rear on both grades — because the Supra gets its stance from wide wheels tucked under wide arches rather than from low offsets, which is why aftermarket sets in the +20 to +40 band cover almost everything owners run.
Honest note: these fitment specs are estimates compiled from manufacturer and published data, and they vary by trim, model year and market. Always verify bolt pattern, offset, width and brake clearance with the seller or manufacturer before ordering.
Popular GR Supra setups and looks
The most Supra-specific move in the wheel world is going down in diameter, not up. The 3.0 leaves the factory on staggered 19s, and a lot of owners who actually drive their cars hard buy a second set of 18s in a square fitment — something in the region of 18×10 at +25 to +30 with 275/35R18 at all four corners. The reasoning is practical: 18-inch performance tires are cheaper and come in more track compounds, a square setup lets you rotate corner to corner, and the inch you give up in rim comes back as sidewall. The catch is the brake. The 3.0's front rotors are 348 mm behind four-piston Brembo calipers, so an 18 needs a barrel profile that clears them — many do, but it is a wheel-by-wheel check rather than a size you can assume. The 2.0's 330 mm single-piston fronts are much easier to clear.
Beyond that, a few habits show up again and again on this car:
- Staggered for the street, square for the track. Factory staggering is aggressive — the rear wheel is a full inch wider than the front — so street builds usually keep it, often a 9.5 up front and a 10.5 out back. Past roughly 10.5 inches at the rear you start hearing about camber plates and liner trimming rather than bolt-on fitment.
- Bronze and gold dominate. They read as intentional on white, black and the loud factory colors alike. Gunmetal and satin black are the conservative default; a polished lip suits the car's curves but lives a hard life at ET32.
- Weight is a real argument here. The 3.0's factory 19s are forged, so a heavy cast replacement can be a step backwards in unsprung weight even when it looks better — worth knowing before you shop on looks alone.
- The 2.0's 18s are a cheap second set. They share the pattern, bore and offsets with the 3.0, so owners do move them across — subject to the same front-brake clearance check as any other 18.
Wheels in the catalog
The catalog holds 650+ real aftermarket wheels from 21 brands, each with the manufacturer's own specs rather than a generic 3D model. One thing to know going in: 5x112 is a European drilling, so several of the classic Japanese wheels people picture on a Supra were designed around 5x114.3 and only reach this car in specific sizes and part numbers. Brands that come up constantly on MkV builds — RAYS/Volk Racing, Titan 7, Enkei, Vossen, Rohana and ESR — cover the ground between them, from lightweight forged track wheels to deep-concave street faces.
We won't tell you from a web page that a specific wheel model fits your car. Inside the app, FITS badges and the Decision Score run that check against the pattern and sizes detected on your own Supra, brake clearance included — and even then, confirm with the seller before you order.
FAQ
Will aftermarket wheels fit my Toyota GR Supra?
Every MkV GR Supra — 2020 cars through the 2026 Final Edition, 2.0 and 3.0 alike — uses a 5x112 bolt pattern with a 66.6 mm center bore and M14x1.25 lug bolts torqued to roughly 140 Nm (103 lb-ft). That is BMW G-chassis hardware rather than the 5x114.3 Toyota used on older Supras, so you are shopping the 5x112 side of the catalog. Whether a given wheel actually works still comes down to width, offset and brake clearance, and because the car uses bolts instead of studs you also need the right bolt length and seat shape for the wheel you buy.
Do BMW wheels fit a GR Supra?
Often, yes. The MkV shares its platform, hubs and wheel hardware with the BMW Z4 G29 built alongside it, and both are 5x112 on a 66.6 mm bore, so Z4 wheels and other modern 5x112 BMWs bolt straight on when the width and offset suit. Two traps come with that. Older BMWs are 5x120 on a roughly 72.5 mm bore and will not fit, and neither will anything off a MkIV Supra, which was 5x114.3 on a 60.1 mm bore with M12x1.5 studs. Check the drilling stamped on a used set rather than trusting the badge on the car it came off.
Can I run 18-inch wheels on a GR Supra 3.0?
Many owners do, and an 18 is the most common second set on this car. A square 18-inch setup — often around 18x10 with 275/35R18 at all four corners — costs less to tire, lets you rotate wheels corner to corner and adds sidewall for track days. The limit is the brake. The 3.0 runs 348 mm front rotors behind four-piston Brembo calipers, so an 18-inch wheel needs a barrel profile that clears them. Plenty of wheels do, but confirm the specific model rather than assuming any 18 will fit. The 2.0's 330 mm single-piston front brakes are far less fussy.
Do the GR Supra 2.0 and 3.0 use different wheels?
Same bolt pattern, same bore, same offsets — different diameter. The 2.0 sold from 2021 to 2024 came on 18x9 ET32 front and 18x10 ET40 rear with 255/40R18 and 275/40R18 tires. The 3.0 has run 19x9 ET32 front and 19x10 ET40 rear on 255/35R19 and 275/35R19 since 2020. Both are staggered from the factory, with a rear wheel a full inch wider than the front. A 3.0's 19s bolt onto a 2.0 without drama; moving 2.0 wheels the other way onto a 3.0 is the brake-clearance question described above.
Is it free, and does it work with my model year?
WheelPeek is free during the public beta, runs in your browser, and takes about ten seconds per render. It works with photos of any GR Supra, from a 2020 Launch Edition to the 2026 MkV Final Edition, because the AI reads the make, model, bolt pattern and OEM wheel sizes out of the photo rather than from a year-and-trim menu. If your car is already modified, a custom fitment override lets you enter what you are actually running so the scoring follows your build instead of the factory numbers.
