BMW M3 Wheel Visualizer
See wheels on your own M3 before you buy — upload a photo, pick real aftermarket wheels, and get a photoreal render in about ten seconds.
How it works on your M3

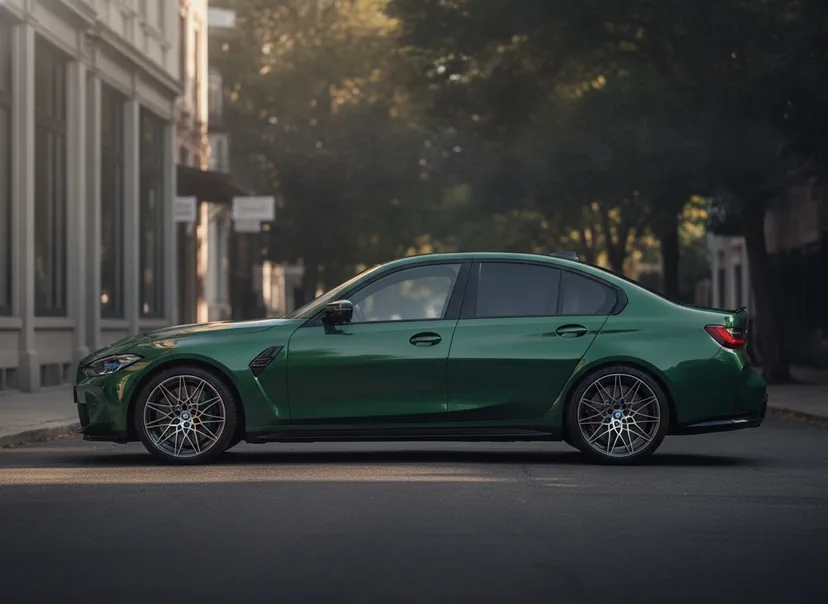

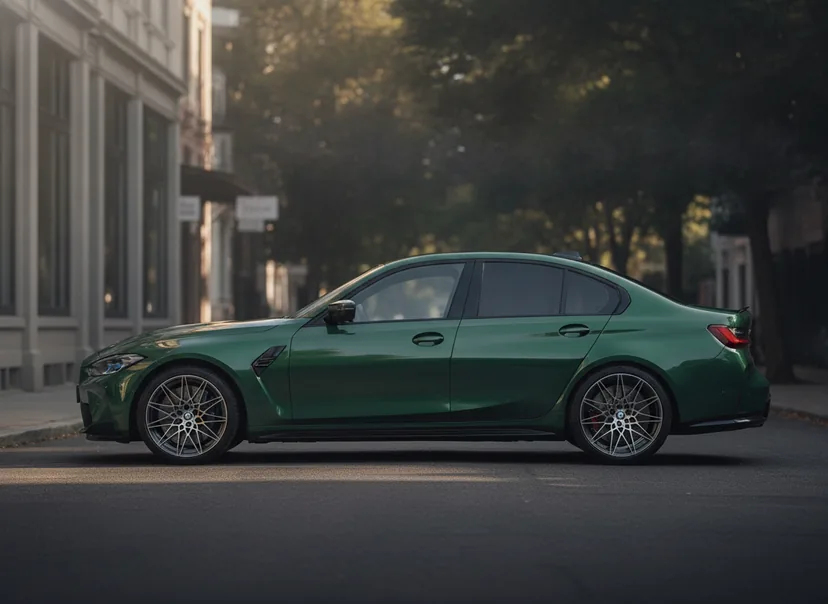

Drag the line. Actual WheelPeek output: an AI-generated demo M3 re-rendered with Forged Metallics FM07 Vector in satin black — the same ten-second pipeline that runs on a photo of your own car.
WheelPeek works with photos of any M3 — you don't need your VIN or a chassis code to start, because it reads the car itself:
- Add a photo of your car. Open the free beta and snap or import a shot of your M3 — a clean side or front three-quarter angle in even light renders best. Not near the car? Generate a demo car and play with it first.
- Let the AI read it. It identifies the make, model, bolt pattern and OEM wheel sizes from the photo, so it already knows an F80 is a
5x120car and a G80 is5x112— the distinction that decides half of M3 wheel shopping. - Pick real wheels and render. Browse 650+ real wheels from 21 brands with FITS badges flagging what matches your car's pattern and sizes, then tap: a photoreal HD image replaces your photo in about ten seconds, calipers showing through the spokes.
- Compare, then decide. Heart your favorites and line them up on a 2×2 or 3×3 comparison sheet — same car, same angle, only the wheels change — or share a numbered voting card so friends can reply with a number.
BMW M3 wheel specs & fitment
| Generation | Bolt pattern | Center bore | OEM wheel sizes | Typical OEM tire sizes |
|---|---|---|---|---|
| E30 M3 (1986–1991) | 5x120 |
72.6 mm | 15×7 ET30; Evo 16×7.5 ET27 | 205/55R15; 225/45R16 |
| E36 M3 (1992–1999) | 5x120 |
72.6 mm | 17×7.5 front / 17×8.5 rear, ET41 | 225/45R17 front, 245/40R17 rear |
| E46 M3 (2000–2006) | 5x120 |
72.6 mm | 18×8 ET47 front / 18×9 ET26 rear; 19″ option | 225/45R18 front, 255/40R18 rear |
| E90 / E92 / E93 M3 (2008–2013) | 5x120 |
72.6 mm | 18×8.5 ET29 front / 18×9.5 ET23 rear; 19″ Competition | 245/40R18 front, 265/40R18 rear |
| F80 M3 (2014–2018) | 5x120 |
72.6 mm | 18×9 ET29 front / 18×10 ET40 rear; 19″ option (437M); Competition 20×9 ET29 / 20×10 ET40 (666M) | 255/40R18 front, 275/40R18 rear |
| G80 M3 (2021–present) | 5x112 |
66.6 mm | 18×9.5 front / 19×10.5 rear (824M); 19×9.5 front / 20×10.5 rear (825M), all ET20 | 275/40R18 + 285/35R19; 275/35R19 + 285/30R20 |
The 5x112-versus-5x120 trap is the thing to get right. For 35 years the M3 was a 5x120 car with a 72.6 mm hub, from the E30 straight through the F80 — which is why the used market is full of gorgeous 5x120 sets at reasonable money. The G80 then switched to 5x112 with a smaller 66.6 mm bore, and the two families do not interchange in either direction. If you own a G80 and find F80 Competition wheels at a tempting price, they will not bolt on; if a seller lists "BMW M3 wheels" without naming the chassis, ask before you pay. Adapters can bridge the gap, but they move the wheel outward, change your effective offset and track, add unsprung weight and add a second set of fasteners to keep torqued — a real modification, not a shortcut.
One more wrinkle for G80 owners: 5x112 is a pattern BMW now shares with Mercedes-Benz, Audi and Volkswagen, and it is not one interchangeable pool. BMW and Mercedes use a 66.6 mm bore; most Audi and VW 5x112 wheels are machined for 57.1 mm and will not slide over the bigger BMW hub. Hardware differs too — BMW uses lug bolts rather than studs and nuts: M12x1.5 on the E-chassis cars, M14x1.25 on the F80 and G80, 60° conical seat, roughly 140 Nm (103 lb-ft) on the G80. And because almost every M3 since the E36 left the factory staggered, you are shopping for two sizes rather than one.
Honest note: these fitment specs are estimates compiled from manufacturer and published data, and they vary by trim, model year and market. Always verify bolt pattern, offset, width and brake clearance with the seller or manufacturer before ordering.
Popular M3 setups and looks
The M3 has the deepest wheel culture of any modern sports sedan, and it splits fairly cleanly into camps:
- Square setups for track use. The factory stagger is a road-car choice. Owners who run track days often move to a square set — one size at all four corners — so tires rotate and spares stay simple. On the F80 and G80 a square 18- or 19-inch set is a familiar second-set-of-wheels build.
- Forged and flow-formed, for weight. M3s have grown heavy, and the G80 carries big brakes and wide tires. Lightweight wheels come up constantly in owner threads because unsprung weight is one of the few changes you feel immediately.
- Heritage cross-spokes. Mesh and cross-spoke designs are practically the house style on E36 and E46 cars, and they still read correctly on newer chassis — the safest choice if you want a period-correct M3 rather than an obviously modified one.
- Concave faces on the G80. The factory ET20 offset and wide arches leave room for a genuinely dished face, which is why the G80 wears deep-concave designs better than most sedans.
- Finish follows the paint. Satin black and gunmetal are the default on Alpine White, black and gray cars. Bronze and gold are the enthusiast pick on the bolder M colors — Isle of Man Green, Sao Paulo Yellow, Toronto Red — and a polished lip brightens a dark car at the cost of living with curb rash forever.
- Show the calipers, or don't. Blue, red and black M Compound calipers are a design element here. Open multi-spoke designs put them on display; denser mesh hides them — a legitimate reason to render both.
Wheels in the catalog
The catalog holds 650+ real aftermarket wheels from 21 brands, each with the manufacturer's own specs rather than a generic 3D model. Because BMW built 5x120 cars for decades, the older M3 chassis see an unusually deep slice of it, and 5x112 support has been catching up steadily since the G80 launched. Brands that come up often on M cars — BBS, Vossen, Titan 7, RAYS/Volk Racing, Rohana and ESR — are all in there, from classic mesh to lightweight track designs to budget-friendly sets.
We won't tell you a specific wheel model fits your car from a web page. Inside the app, FITS badges and the Decision Score do that check against the pattern and sizes detected on your actual M3, including a brake-clearance rating that matters more on this car than most — and even then, confirm with the seller before you order.
FAQ
Will aftermarket wheels fit my BMW M3?
Yes, but which wheels depends entirely on which M3 you have. Every M3 from the E30 through the F80 uses a 5x120 bolt pattern with a 72.6 mm center bore. The G80, built from 2021, moved to 5x112 with a 66.6 mm bore. Those two families do not interchange. Once you know your pattern, fitment still comes down to diameter, width, offset and brake clearance, and most M3s are staggered from the factory, so the front and rear wheels are not the same size.
Do F80 M3 wheels fit a G80 M3?
No. This is the single most expensive mistake in M3 wheel shopping. The F80 and every M3 before it is 5x120; the G80 is 5x112, and the hub bore shrank from 72.6 mm to 66.6 mm at the same time. A used set of 20-inch Competition wheels off an F80 will not bolt to a G80, and the reverse is equally true. Bolt-pattern adapters exist, but they push the wheel outward, change your effective offset and track, add unsprung weight and add another torque check to your routine. Treat a used-wheel listing as a 5x120 or 5x112 question first and a style question second.
Is the G80 M3 5x112 the same as Audi and VW 5x112?
The stud circle matches, but the hub does not always. BMW G-chassis cars use 5x112 with a 66.6 mm center bore, which is the same bore family as Mercedes-Benz. Most Volkswagen and Audi 5x112 wheels are machined for a 57.1 mm bore instead, so they will not sit hub-centric on a G80 without help, and a wheel bored to 57.1 mm physically cannot slip over the larger BMW hub at all. Seat shape and bolt length differ between makes too. Check the bore and the hardware, not just the pattern.
Will 18-inch wheels clear the brakes on my M3?
On most M3s yes, because 18 inches was the factory size from the E46 through the F80. The G80 is the one to check. Its base 824M setup is an 18-inch front wheel, so 18s can work on a steel-brake car, but the M Compound calipers are large and spoke shape matters as much as diameter. Cars fitted with the M Carbon Ceramic option need a 19-inch minimum up front, and even then the clearance to the caliper is tight enough that wheel makers publish specific approved fitments. Confirm brake clearance for your exact brake package before ordering.
Is it free, and does it work with my model year?
WheelPeek is free during the public beta, runs in your browser, and takes about ten seconds per render. It works with photos of any M3, from an E30 to the current G80, because the AI reads the make, model, bolt pattern and OEM wheel sizes out of the photo rather than from a year-and-trim menu. If your car is modified, or if you have already fitted a different pattern by way of adapters, a custom fitment override lets you tell the app what you are actually running so the scoring follows your build.
