Jeep Wrangler Wheel Visualizer

How it works on your Wrangler

Demo car WheelPeek render

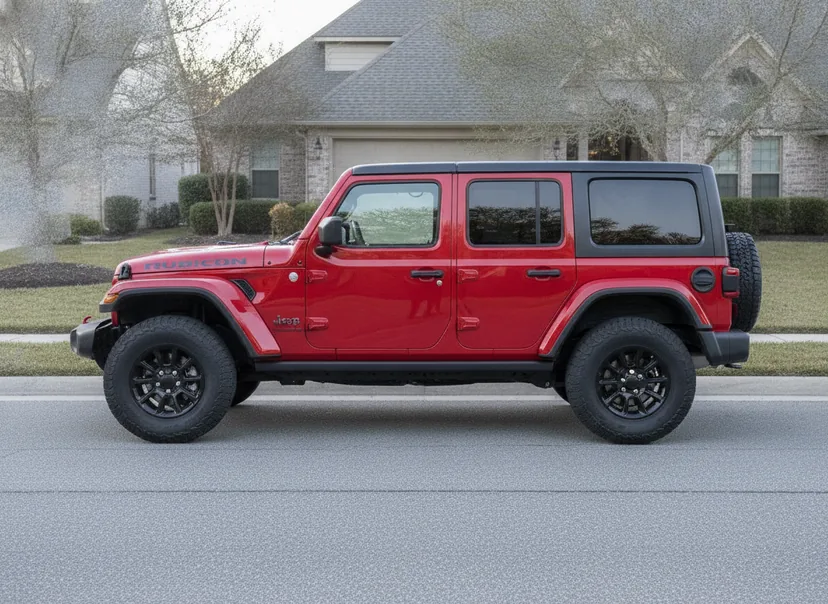

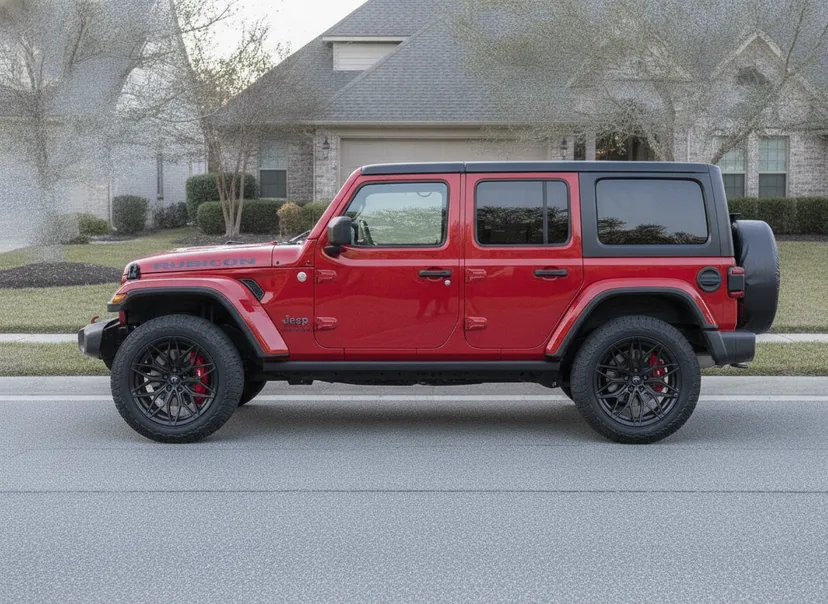

Drag the line. Actual WheelPeek output: an AI-generated demo Wrangler re-rendered with Forged Metallics FM07 Vector in satin black — the same ten-second pipeline that runs on a photo of your own car.

A Wrangler hides less than almost anything else on the road. Flat fender flares and wide-open arches mean the wheel and tire are most of what you see from the side, so a swap that reads as subtle on a sedan turns a Wrangler into a visibly different Jeep. WheelPeek works with photos of any Wrangler — no VIN or trim code needed, because it reads the vehicle itself:

1. Add a photo of your Jeep. Open the free beta and snap or import a shot of your Wrangler — a clean side or front three-quarter angle in even light renders best, and a flat surface beats a rutted trail for a first try. Not near the Jeep? Generate a demo vehicle and play with it first.
2. Let the AI read it. It identifies the make, model, bolt pattern and OEM wheel sizes from the photo and finds the wheels automatically, so it already knows a JK or JL Wrangler is a 5x127 vehicle on 17- to 18-inch rims.
3. Pick real wheels and render. Browse 650+ real wheels from 21 brands with FITS badges flagging what matches your Jeep's pattern and sizes, then tap: a photoreal HD image replaces your photo in about ten seconds, right down to how the spokes sit against the tire.
4. Compare, then decide. Heart your favorites and line them up on a 2×2 or 3×3 comparison sheet — same Jeep, same angle, only the wheels change — or share a numbered voting card so the people you wheel with can reply with a number.

Jeep Wrangler wheel specs & fitment

The 5x127 pattern — five lugs on a five-inch circle — is one of the best-supported sizes in off-road wheels, because it is shared with the Gladiator JT and several Grand Cherokee generations. The center bore is 71.5 mm right across the family, TJ included, so hub-centric rings are the one accessory almost every aftermarket set needs. The 2007 changeover is the trap: the TJ ran 5x114.3, and used-wheel listings for "Jeep Wrangler" routinely mix the two patterns together.

Lug hardware moved on a different schedule than the bolt pattern. TJ and JK Wranglers use 1/2 inch × 20 studs; the JL and Gladiator switched to metric M14×1.5. JK and JL wheels will therefore swap between the two vehicles, but the lug nuts will not — Jeep's published torque is about 100 lb-ft for the JK's 1/2 inch studs and 130 lb-ft for the JL's 14 mm ones. Offset is the other number that matters here: factory JL wheels sit at about +44 mm, which tucks the tire well inside the flare, and nearly every aftermarket Wrangler wheel goes the other way. Jeep's own factory 35-inch option, the Xtreme Recon package, puts a 315/70R17 on a 17×8 beadlock-capable wheel with a swing-gate reinforcement to carry the spare.

Popular Wrangler setups and looks

Wrangler wheel shopping is really tire shopping with wheels attached, and that is why the 17-inch rim never went out of style here. Smaller diameter means more sidewall to air down on a trail, more rubber between a rock and your rim, and the widest choice of 35-inch tires. Owners who order 20-inch factory wheels often sell them on within a year or two and drop back to 17s.

Negative offset is the norm on a Wrangler, not a mistake. Where a lowered street car chases a high positive offset, Jeep owners deliberately push the wheel outward — the two fitments you see over and over are a 17×8.5 at 0 mm and a 17×9 at about −12 mm, usually under a 35×12.50R17. The 17×9 at −12 sits roughly three quarters of an inch further out than the 17×8.5 at 0, and that small gap is the difference between a build that tucks cleanly and a near-identical one that catches the front fender liner at full lock. Coming off the factory +44 mm, even a 0-offset wheel moves each corner close to 1.75 inches outward before you count the extra width. Poke is not free either: more spray up the flanks, more leverage on wheel bearings and steering components, and past about 35 inches of tire you are into trimming, a lift, a re-gear and a speedometer recalibration.

• Beadlock-look faces are everywhere. True beadlocks generally aren't DOT-approved for street use, so simulated rings do the visual work on daily-driven Jeeps — while Jeep's own beadlock-capable wheels let you bolt a functional ring on just for the trail.
• Matte and satin black lead, bronze is the fashionable second. Gunmetal and grey read well against the sand and green paints Jeep sells; polished lips are rare here for an obvious reason, which is that they get sandblasted.
• Steel wheels are a real choice, not a compromise. A plain black or white steelie is a deliberate look on a Wrangler, and it bends rather than cracks when it meets a rock.
• Square, always. Wranglers run one size at all four corners, which keeps rotation on the table and matters more here than usual because of the fifth wheel.
• The spare has to match. That full-size spare hangs on the tailgate at eye level, so an odd factory wheel back there undoes the whole set. Plan on five, not four — and remember the extra weight is riding on the swing gate.

Wheels in the catalog

The catalog holds 650+ real aftermarket wheels from 21 brands, each carrying the manufacturer's own specs rather than a generic 3D model. On the off-road side, names that come up constantly on Wranglers — Method Race Wheels, American Racing, fifteen52, Rotiform and Blaque Diamond — are all in there, spanning simulated-beadlock trail faces, classic five- and six-spoke truck designs and the more street-leaning fitments that suit a mall-crawler.

We won't tell you from a web page that a specific wheel model fits your Jeep. Inside the app, FITS badges and the Decision Score run that check against the pattern and sizes detected on your actual Wrangler, including a brake-clearance rating — and even then, confirm with the seller before you order, especially if you are already lifted.
