Chevrolet Silverado 1500 Wheel Visualizer
See wheels on your own Silverado 1500 before you buy — upload a photo, pick real aftermarket wheels, and get a photoreal render in about ten seconds.
How it works on your Silverado

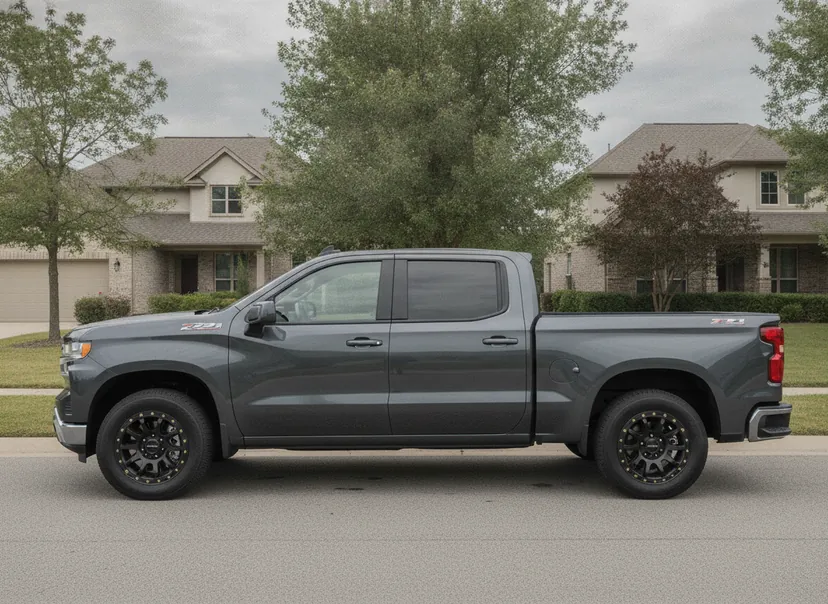

Drag the line. Actual WheelPeek output: an AI-generated demo Chevrolet Silverado 1500 re-rendered with Method MR305 NV in Matte Black — the same ten-second pipeline that runs on a photo of your own truck.
A truck is one of the hardest vehicles to judge from a catalog photo: the same wheel that fills the arch on a leveled crew cab disappears on a stock work truck. WheelPeek works with photos of any Silverado 1500, and you don't need a VIN or a trim code to start:
- Add a photo of your truck. Open the free beta and snap or import a shot of your Silverado — a clean side or front three-quarter angle in even light renders best. Not parked next to it? Generate a demo vehicle and experiment first.
- Let the AI read it. It identifies the make, model, bolt pattern and OEM wheel sizes from the photo, so it already knows a Silverado 1500 is a
6x139.7truck running anything from a 17-inch steel to a 22-inch alloy. - Pick real wheels and render. Browse 650+ real wheels from 21 brands with FITS badges flagging what matches your truck's pattern and sizes, then tap: a photoreal HD image replaces your photo in about ten seconds.
- Compare, then decide. Heart your favorites and line them up on a 2×2 or 3×3 comparison sheet — same truck, same angle, only the wheels change — or share a numbered voting card so friends can reply with a number.
Chevrolet Silverado 1500 wheel specs & fitment
| Generation | Bolt pattern | Center bore | OEM wheel sizes | Typical OEM tire sizes |
|---|---|---|---|---|
| GMT900 (2007–2013) | 6x139.7 |
78.1 mm | 17×7.5, 18×8, 20×8.5 | P265/70R17, P265/65R18, P275/55R20 |
| K2XX (2014–2018) | 6x139.7 |
78.1 mm | 17×8, 18×8.5, 20×9, 22×9 | 255/70R17, 265/65R18, 275/60R20, 275/50R22 |
| T1XX (2019+) | 6x139.7 |
78.1 mm | 17×8, 18×8.5, 20×9, 22×9; off-road trims 18×8.5 | 255/70R17, 265/65R18, 275/60R20, 275/50R22; Trail Boss/ZR2 275/70R18 |
The reassuring part of shopping for a Silverado 1500 is that the numbers barely move. Every half-ton Silverado from the GMT900 era onward runs a 6x139.7 pattern — six lugs on a 5.5-inch circle — over a 78.1 mm center bore with M14x1.5 lug nuts, and GM has kept that combination long enough that wheels move between the 2007–2013 GMT900, the 2014–2018 K2XX and the 2019-and-up T1XX without drama. Factory offsets sit in a fairly narrow band, roughly +24 to +28 mm on the common 8 to 9-inch-wide rims, which tuck the wheel neatly inside the arch. Most aftermarket truck wheels are wider and lower offset, and that is exactly what produces the leveled, filled-out stance owners are after.
The GMC Sierra 1500 is the same truck. It shares the pattern, the bore, the lugs and almost every factory wheel size with the Silverado, so a set that fits one fits the other and used listings routinely cover both — the practical difference is the center cap badge. Two traps are worth naming. The half-ton 1500 is 6x139.7, but the heavy-duty 2500 and 3500 move to an 8-lug pattern and share nothing with it, so confirm you are shopping 1500 wheels. And load rating is the spec people skip: a full-size truck needs a wheel rated for its weight, and plenty of good-looking wheels are not, so read the rating in writing before you commit.
Honest note: these fitment specs are estimates compiled from manufacturer and published data, and they vary by trim, model year, cab and bed configuration, and market. Always verify bolt pattern, offset, width and brake clearance with the seller or manufacturer before ordering.
Popular Silverado setups and looks
Silverado owners tend to land in a few clear camps, and the wheel usually follows the tire and the ride height rather than the other way around:
- The leveled 20 with a 33 is the default. A 20-inch wheel and a 33-inch all-terrain on a two-inch level is the most-copied look on the platform — enough presence to read as modified, still civil on a commute, and it keeps a usable sidewall.
- 18s are the working truck's choice. Drop a size and you gain sidewall, a far wider selection of load-rated all-terrains, and a cheaper set to replace — which is why the Trail Boss and ZR2 come on 18s and owners who actually use their trucks often stay there.
- 22s are a street decision. High Country and other loaded trims wear 22s from the factory, and the aftermarket versions look sharp on a stock-height or lowered truck — at the cost of ride quality and a steeper tire bill.
- Finish trends toward flat. Satin black, gunmetal and bronze dominate; machined and polished faces suit chrome-trim LTZ and High Country trucks. A simulated-beadlock ring is the shorthand for the off-road look without the upkeep of a real one.
- Load rating is not optional. A wheel has to be rated for the Silverado's weight, and plenty of good-looking wheels aren't. It's the one spec worth confirming in writing before you order.
Two things owners learn late: a taller tire reads your speedometer optimistically until it's recalibrated, and a second set of wheels needs its own TPMS sensors unless you swap them over every time.
Wheels in the catalog
The catalog holds 650+ real aftermarket wheels from 21 brands, each with the manufacturer's own specs rather than a generic 3D model. On the truck side that includes Method Race Wheels and American Racing for the off-road and classic-truck end, Rotiform and fifteen52 for cleaner monoblock and utility-styled faces, and Vossen and Blaque Diamond for the polished street-truck look that suits an LTZ or a High Country.
We won't tell you from a web page that a specific wheel model fits your truck. Inside the app, FITS badges and the Decision Score run that check against the pattern and sizes detected on your actual Silverado, including a brake-clearance rating — and even then, confirm load rating and offset with the seller before you order.
FAQ
Will aftermarket wheels fit my Chevy Silverado 1500?
The half-ton Silverado 1500 has used a 6x139.7 bolt pattern — the same thing as 6x5.5 inches — with a 78.1 mm center bore and M14x1.5 lug nuts for a very long time, across the GMT900 trucks of 2007 to 2013, the K2XX trucks of 2014 to 2018 and the current T1XX truck from 2019 on. That consistency is the good news: 6x139.7 is one of the most common truck patterns in the aftermarket, so the selection is huge. Two cautions matter. Do not confuse the 1500 with the heavy-duty 2500 and 3500, which use an 8-lug pattern and share nothing with it. And a wheel has to be load-rated for a full-size truck, which not every good-looking wheel is, so read the rating rather than assuming it clears.
Do GMC Sierra 1500 wheels fit a Silverado 1500?
Yes. The Sierra 1500 is the same truck under different sheet metal, so it shares the 6x139.7 pattern, the 78.1 mm bore and the M14x1.5 lugs with the Silverado 1500 of the same era. Sierra takeoff wheels bolt straight onto a Silverado and vice versa, which is why used-wheel listings often cover both. The only things to match are the ones you would check on any swap — diameter, width, offset and load rating — plus the obvious point that a set with GMC center caps will wear its badge on your Chevy until you change them.
What wheels and tires work with a leveling kit on a Silverado?
A leveling kit lifts the front to match the rear, and it is the single most common Silverado modification because it opens room for a bigger tire and a more aggressive stance. On stock height most owners run something in the 265 to 275 range on the factory wheel. A level of around two inches makes a 33-inch tire realistic, usually on a 20-inch wheel pulled to a lower offset than stock, though the further out you go the more likely you are to trim a fender liner or catch the crash bar at full lock. Bigger tires and lower offsets change the answer, and cab and bed length change it again, so treat published setups as starting points and confirm clearance with your installer.
Will bigger wheels hurt the ride or towing?
On a truck the tire matters more than the wheel. Going up to the 22-inch wheels that come on High Country and other top trims trades sidewall for looks, and you feel it on rough pavement. Heavy all-terrain and mud-terrain tires add weight and rolling resistance, which nibbles at fuel economy and, if you tow, at how the truck feels under load. None of that makes the upgrade wrong — plenty of trucks live happily on 22s or on 33-inch all-terrains — it just means load rating and overall diameter are worth confirming before you order, especially if the truck works for a living.
Is it free, and does it work with my model year?
WheelPeek is free during the public beta, runs in your browser, and takes about ten seconds per render. It works with photos of any Silverado 1500, from a GMT900 truck through the current T1XX, because the AI reads the make, model, bolt pattern and OEM wheel sizes out of the photo rather than asking you to pick a year and trim from a menu. If your truck is already leveled or lifted, a custom fitment override lets you enter what you actually run so the scoring follows your build instead of the stock numbers.
